Mathematics
AB = 7.2 cm, BC = 5.8 cm, CD = 6.3 cm, AD = 4.3 cm and angle A = 75°.
Rectilinear Figures
22 Likes
Answer

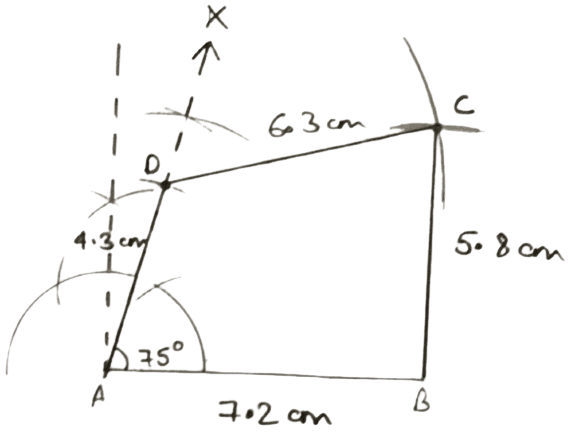

Steps of construction :
Draw a line segment AB = 7.2 cm.
Through A, draw AX such that ∠A = 75°.
From AX, cut AD = 4.3 cm.
With B and D as centers and radii 5.8 cm and 6.3 cm respectively, draw arcs cutting each other at C.
Join BC and CD.
Hence, ABCD is the required quadrilateral.
