Mathematics
Construct a quadrilateral ABCD, such that AB = BC = CD = 6 cm, ∠B = 90° and ∠C = 120°.
Quadrilaterals Constructions
3 Likes
Answer

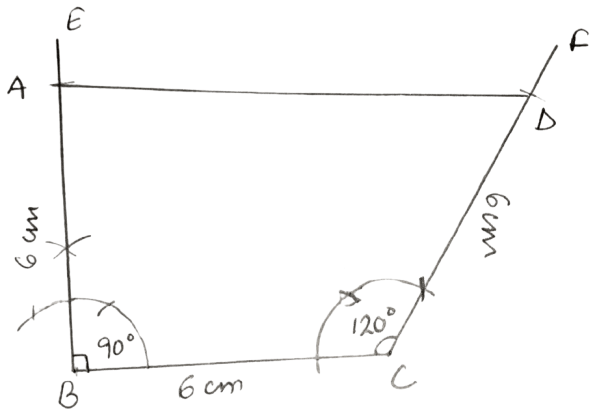

Steps:
Draw BC = 6 cm.
At B, construct ∠EBC = 90° and at C, construct ∠FCB = 120°.
From EB cut AB = 6 cm and from FC cut DC = 6 cm.
Join A and D.
Hence, ABCD is the required quadrilateral.
