In the given triangle ABC, find a point P equidistant from AB and AC; and also equidistant from B and C.
Locus
1 Like
Answer

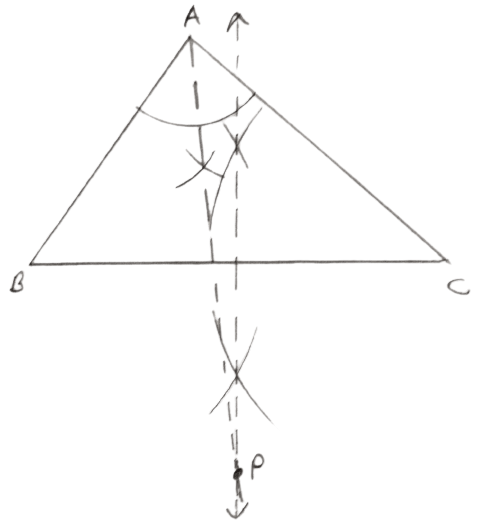

Steps of construction :
In the given triangle, draw the angle bisector of ∠BAC.
Draw the perpendicular bisector of BC which intersects the angle bisector at P.
Since, P lies on angle bisector of ∠BAC and also perpendicular bisector of BC.
Hence, P is the required point.
Answered By
2 Likes
