Mathematics
Using ruler and compasses only; draw a circle of radius 4 cm. Produce AB, a diameter of this circle, upto point X so that BX = 4 cm. Construct a circle to touch AB at X and to touch the circle, drawn earlier, externally.
Constructions
24 Likes
Answer
Steps of construction :
Taking O as center and radius = 4 cm draw a circle.
Draw AB, the diameter of circle with center O.
Produce AB to X such that BX = 4 cm.
Draw DE perpendicular bisector of BX, intersecting BX at C.
From C, as center and CX as radius draw a circle touching circle with center O at B and passing through X.
Answered By
18 Likes
Related Questions

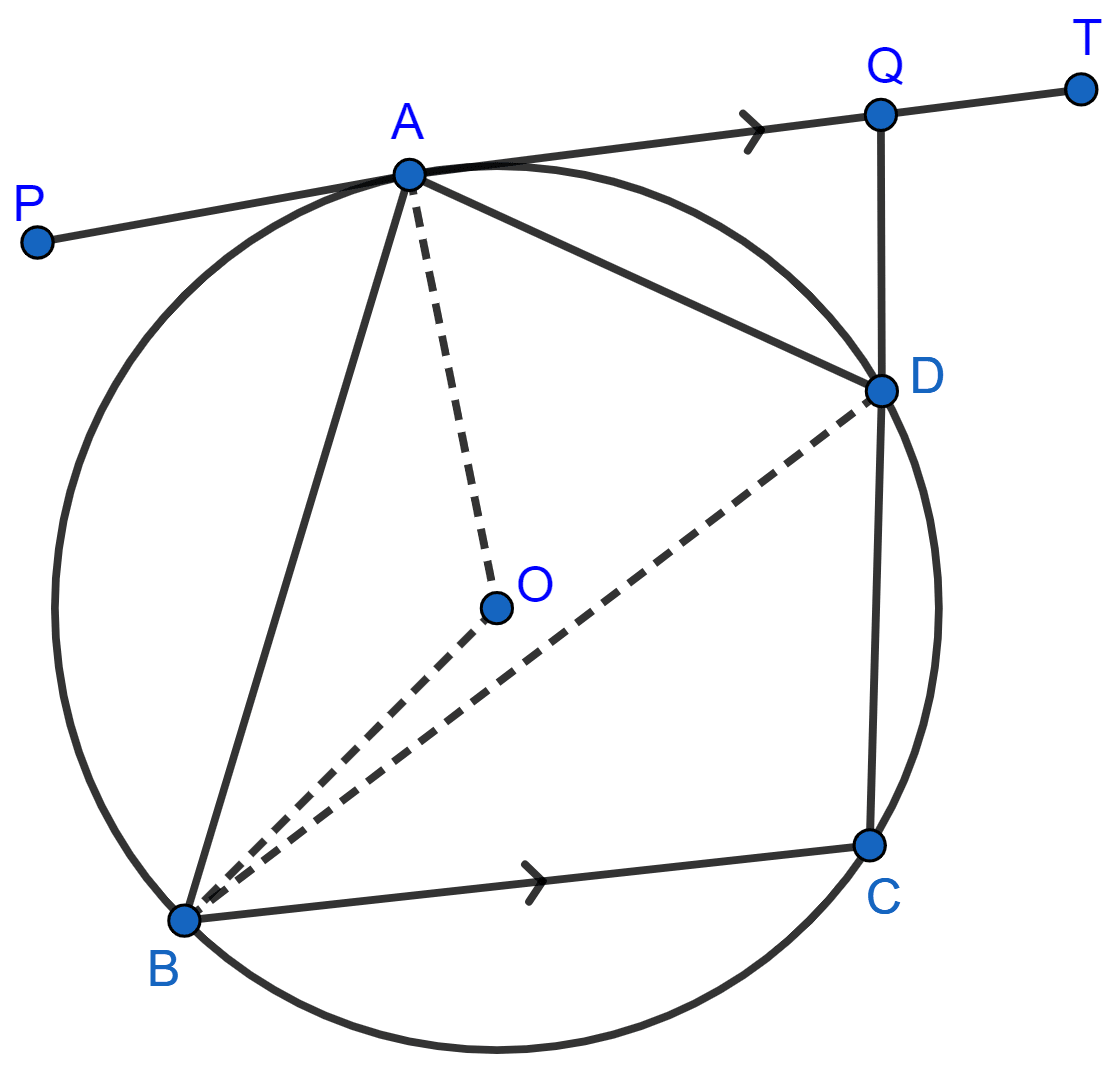

In the given figure, PAT is tangent to the circle with center O, at point A on its circumference and is parallel to chord BC. If CDQ is a line segment, show that :
