Mathematics
Construct a quadrilateral ABCD with AB = 7 cm, BC = CD = 5 cm and ∠ABC = ∠BCD = 90°.
Rectilinear Figures
9 Likes
Answer

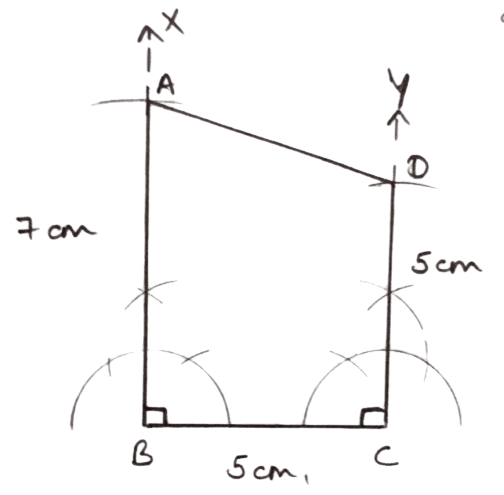

Steps of construction :
Draw a line segment BC = 5 cm.
Draw BX ⊥ BC and CY ⊥ BC.
From BX, cut BA = 7 cm.
From CY, cut CD = 5 cm.
Join AD.
Hence, ABCD is the required quadrilateral.
Answered By
6 Likes
