Construct a rhombus ABCD, if:
diagonal AC = 6.6 cm and diagonal BD = 5.8 cm.
Quadrilaterals Constructions
14 Likes
Answer

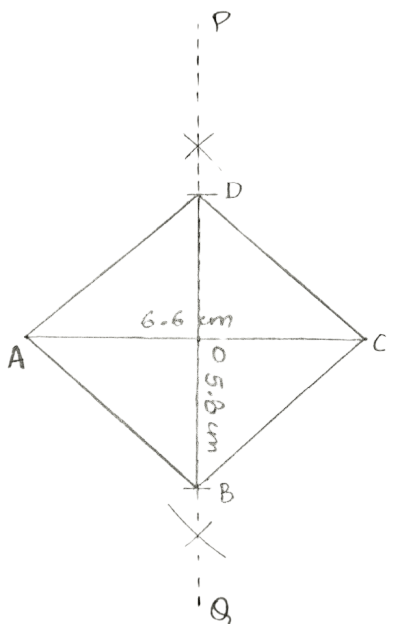

Steps:
Draw AC = 6.6 cm.
Draw the perpendicular bisector of AC. Let PQ be the perpendicular bisector of AC which bisects AC at point O.
From OP, cut OD = = = 2.9 cm and from OQ, cut OB = = 2.9 cm.
Join AB, BC, CD and DA.
Hence, ABCD is the required rhombus.
