Mathematics

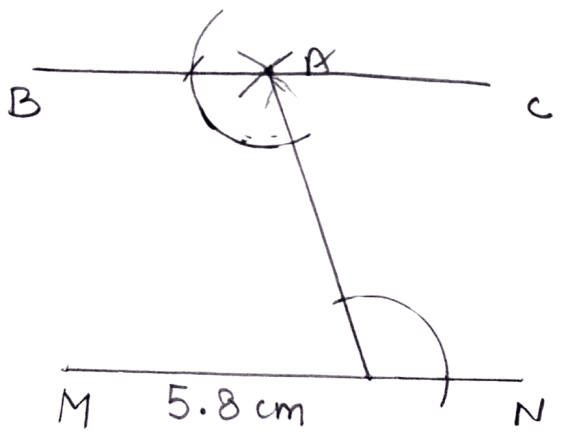

Draw a line MN = 5.8 cm. Locate a point A which is 4.5 cm from M and 5 cm from N. Through A draw a line parallel to line MN.
Quadrilaterals Constructions
9 Likes
Answer
Steps:
Draw a line MN = 5.8 cm.
With M as center and radius equal to 4.5 cm, draw an arc.
With N as center and radius equal to 5 cm, draw an arc which cuts previous arc at point A.
Take any point P in line MN and join it with the given point A.
At point A, construct ∠NPA = ∠PAB.
Produce AB upto any point C.
Hence, BAC is the required parallel line.
