Electronic configuration is the distribution of electrons in the various energy shells of an atom. It is based on the Bohr-Bury scheme, which states that :
- The maximum number of electrons that can be accommodated in a shell is given by 2n2, where n is the shell number.
- The outermost shell cannot have more than 8 electrons.
- A new shell starts filling once the inner shell acquires eight electrons.
Based on the information given above, answer the following questions:
(a) Write the electronic configuration of an atom X with atomic number 19.
(b) Draw the orbital diagram of the ion formed by atom X.
(c) Draw the complete orbital diagrams of the atoms 35Cl and 37Cl.
(d) Which fundamental particle differs in the atoms mentioned in part (c)?
(e) State the general term used for the atoms given in part (c).
Atomic Structure
2 Likes
Answer
(a) electronic configuration of an atom X with atomic number 19:
2, 8, 8, 1
(b)

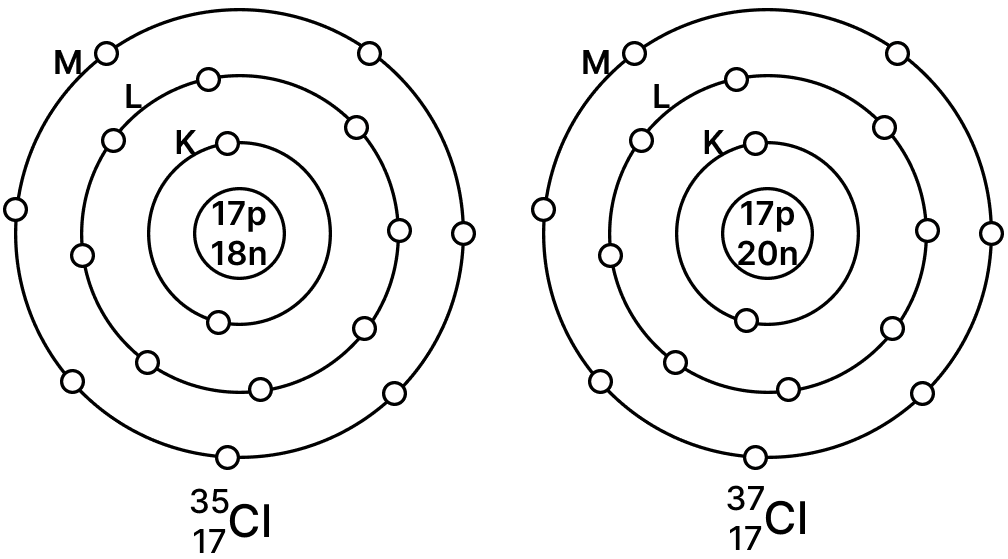

(c)
(d) The number of neutrons differs between 35Cl and 37Cl.
(e) Atoms like 35Cl and 37Cl are called isotopes.
