In a circle of radius 17 cm, two parallel chords of lengths 30 cm and 16 cm are drawn. Find the distance between the chords, if both the chords are :

(i) on the opposite sides of the center,

(ii) on the same side of the center.

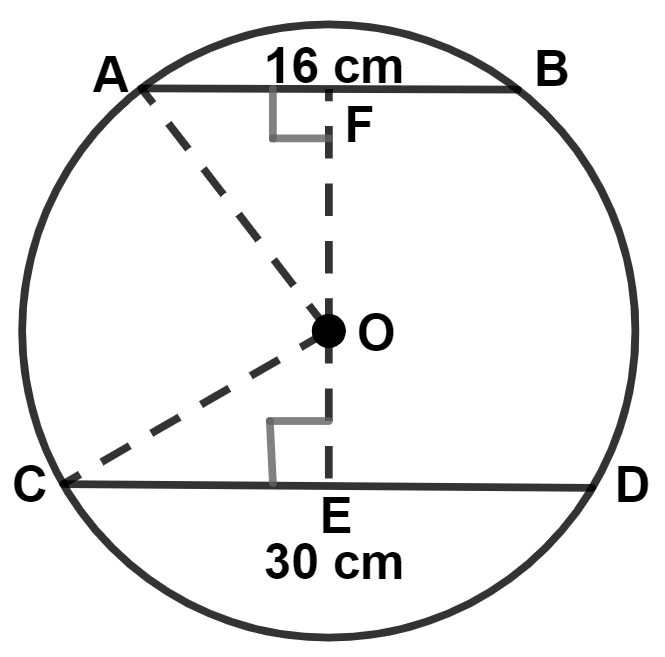

(i) Let AB and CD be chords on opposite side of the center of the circle.

We know that,

Perpendicular from the center to the chord, bisects it.

∴ AF = $\dfrac{AB}{2} = \dfrac{16}{2}$ = 8 cm, CE = $\dfrac{CD}{2} = \dfrac{30}{2}$ = 15 cm.

From figure,

OA = OC = radius = 17 cm.

In right-angled triangle OCE,

By pythagoras theorem,

⇒ Hypotenuse² = Perpendicular² + Base²

⇒ OC² = OE² + CE²

⇒ 17² = OE² + 15²

⇒ 289 = OE² + 225

⇒ OE² = 289 - 225

⇒ OE² = 64

⇒ OE = $\sqrt{64}$ = 8 cm.

In right-angled triangle OAF,

By pythagoras theorem,

⇒ Hypotenuse² = Perpendicular² + Base²

⇒ OA² = OF² + AF²

⇒ 17² = OF² + 8²

⇒ 289 = OF² + 64

⇒ OF² = 289 - 64

⇒ OF² = 225

⇒ OF = $\sqrt{225}$ = 15 cm.

From figure,

⇒ EF = OE + OF = 8 + 15 = 23 cm.

Hence, distance between the chords = 23 cm.

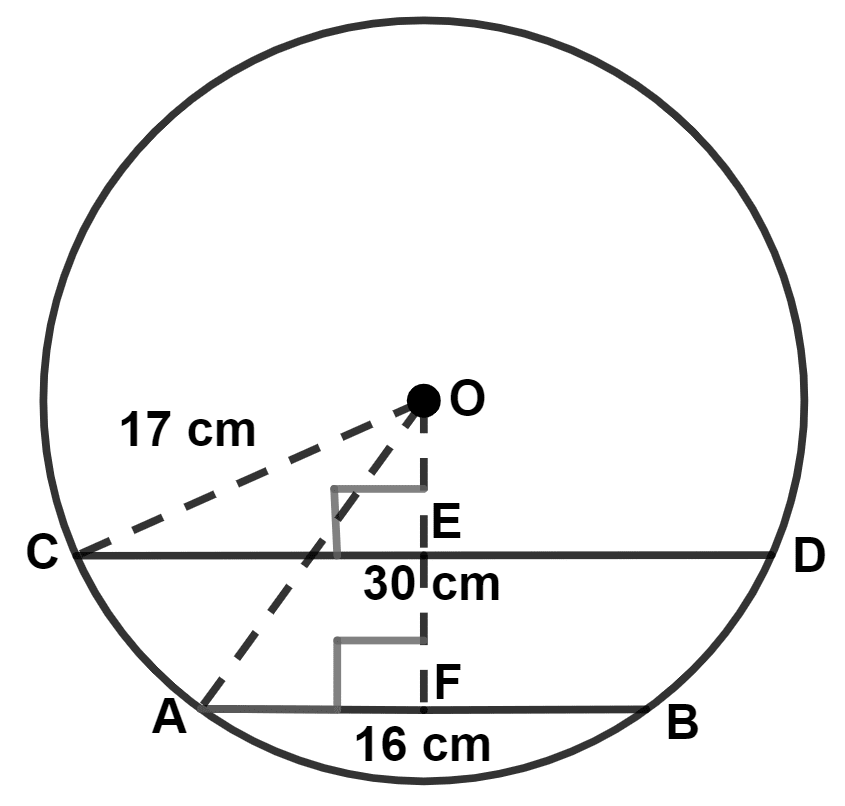

(ii) Let AB and CD be chords on same side of the center of the circle.

We know that,

Perpendicular from the center to the chord, bisects it.

∴ AF = $\dfrac{AB}{2} = \dfrac{16}{2}$ = 8 cm, CE = $\dfrac{CD}{2} = \dfrac{30}{2}$ = 15 cm.

From figure,

OA = OC = radius = 17 cm.

In right-angled triangle OCE,

By pythagoras theorem,

⇒ Hypotenuse² = Perpendicular² + Base²

⇒ OC² = OE² + CE²

⇒ 17² = OE² + 15²

⇒ 289 = OE² + 225

⇒ OE² = 289 - 225

⇒ OE² = 64

⇒ OE = $\sqrt{64}$ = 8 cm.

In right-angled triangle OAF,

By pythagoras theorem,

⇒ Hypotenuse² = Perpendicular² + Base²

⇒ OA² = OF² + AF²

⇒ 17² = OF² + 8²

⇒ 289 = OF² + 64

⇒ OF² = 289 - 64

⇒ OF² = 225

⇒ OF = $\sqrt{225}$ = 15 cm.

From figure,

⇒ EF = OF - OE = 15 - 8 = 7 cm.

Hence, distance between the chords = 7 cm.
