Mathematics
Construct a quadrilateral ABCD; if :
AB = 8 cm, BC = 5.4 cm, AD = 6 cm, ∠A = 60° and ∠B = 75°.
Quadrilaterals Constructions
15 Likes
Answer

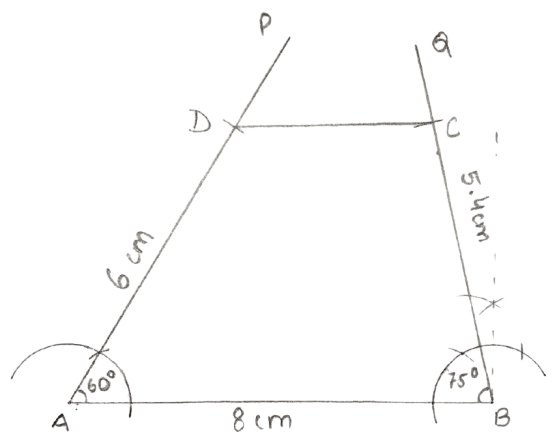

Steps:
Draw AB = 8 cm.
At A, construct angle PAB = 60° and at B, construct angle QBA = 75°.
From PA cut DA = 6 cm and from QB cut CB = 5.4 cm
Join C and D.
Hence, ABCD is the required quadrilateral.
