Construct a rhombus ABCD in which AC = 5.6 cm and BD = 6.3 cm
Rectilinear Figures
1 Like
Answer

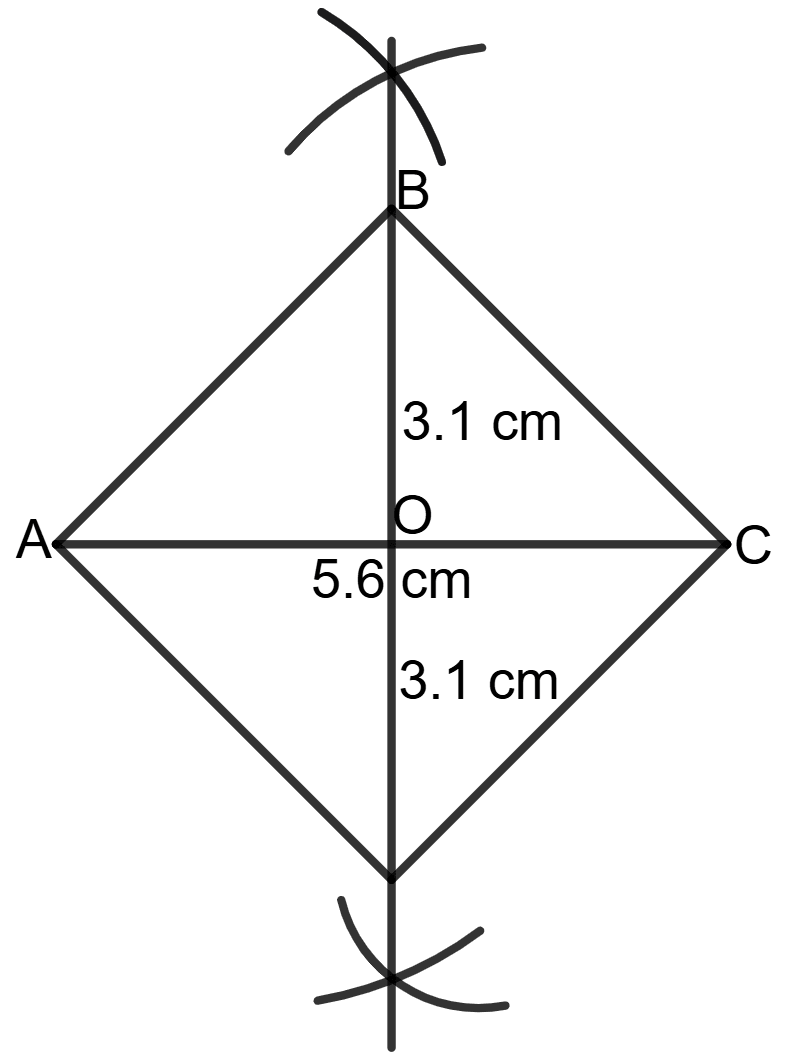

Steps of construction:
Draw AC = 5.6 cm.
Draw the perpendicular bisector of AC which cuts AC at O.
From this perpendicular, cut OD and OB such that, OD = OB = cm.
Join AB, BC, CD and DA.

Hence, ABCD is the required rhombus.
Answered By
2 Likes
Related Questions
Construct a square ABCD in which diagonal AC = 9 cm.
Construct a rhombus ABCD in which each side = 6 cm and ∠B = 45°.
Construct a rectangle ABCD with diagonal AC = 6.6 cm, side BC = 5.2 cm and ∠B = 90°.

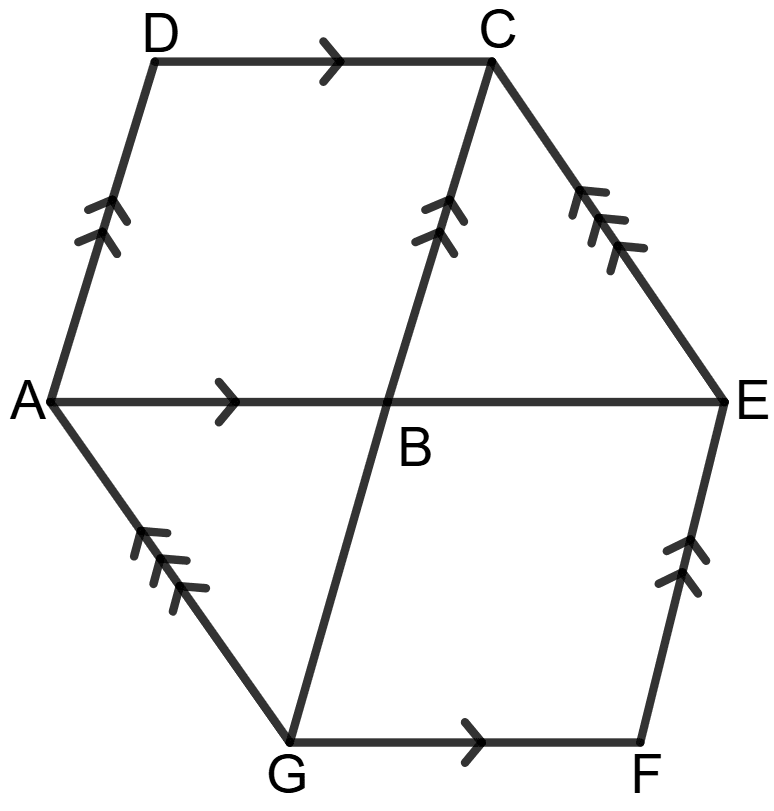

The following diagram shows two parallelograms ABCD and BEFG.
Prove that :
Area of // gm ABCD = Area of // gm BEFG.
