# Spectrum

## Exercise 6(A) — Multiple Choice Type

#### Question 1

When a white light ray falls on a prism, the ray at its first surface suffers —

1. no refraction
2. only dispersion
3. only deviation
4. both deviation and dispersion

both deviation and dispersion

Reason — When a white light enters the first surface of a prism, light of different colours due to their different speeds in glass, gets deviated through different angles towards the base of the prism i.e., dispersion of white light into its constituent colours takes place at the first surface of prism.

Hence, both deviation and dispersion takes place at the first surface.

#### Question 2

When a ray of white light falls on a prism, which of the following statements are correct ?

1. The dispersion of white light occurs at the first surface of the prism.
2. The deviation of light rays occurs at both the surfaces of the prism.
3. The prism does not produce colours, but it only splits the various colours present in the white light.
4. All of the above.

All of the above.

Reason

• The dispersion of white light occurs at the first surface of the prism, where white light separates into its constituent colors due to differences in their refractive indices.
• The deviation of light rays occurs at both surfaces of the prism, where each color of light bends or deviates as it enters and exits the prism due to changes in refractive index.
• The prism does not produce colors but only splits the various colors present in white light.

Hence, all the statements are true.

#### Question 3

The wavelength range of white light is:

1. 4000 nm to 8000 nm
2. 40 nm to 80 nm
3. 400 nm to 800 nm
4. 4 nm to 8 nm

400 nm to 800 nm

Reason — As we know, the wavelength of violet colour is 400 nm and that of red colour is 800 nm. Hence, the wavelength range of white light is 400 nm to 800 nm.

#### Question 4

The correct arrangement of colours in an increasing order of their wavelengths is :

1. Violet < Green < Red
2. Red < Green < Violet
3. Green < Violet < Red
4. Green < Red < Violet

Violet < Green < Red

Reason — The above sequence represents the order of increasing wavelengths of light, with red having the longest wavelength, green in the middle, and violet having the shortest wavelength.

#### Question 5

In the spectrum of white light by a prism, the colour at the extreme end opposite to the base of a prism is —

1. violet
2. yellow
3. red
4. blue

red

Reason

With the help of the figure above, we can see the splitting of white light into its constituent colours. Hence, we observe that the colour at the extreme end opposite to the base i.e., on the top is the red colour.

#### Question 6

Out of red, blue and violet, which colour has the greatest speed in vacuum ?

1. red
2. blue
3. violet
4. all have the same speed

all have the same speed

Reason — All electromagnetic waves, including light, travel at the same speed in a vacuum, which is the speed of light denoted by 'c'. Therefore, regardless of their colour, red, blue, and violet light all travel at the same speed in vacuum.

#### Question 7

A beam consisting of red, blue and yellow colours is incident normally on the face AB of an isosceles right-angled prism ABC as shown in the figure given below. Critical angle of glass-air interface for yellow colour is 45°.

Out of the four emergent rays P, Q, R and S, which one is for the yellow colour :

1. P
2. Q
3. R
4. S

Q

Reason — As the critical angle for yellow colour is 45°, so it suffers refraction along the line AC of the prism.

#### Question 8

The frequency of violet light is 7.5 x 1014 Hz. Its wavelength in nm is :

1. 7500 nm
2. 4000 nm
3. 400 nm
4. 750 nm

400 nm

Reason — As we know,

Speed of light (c) = Frequency (f) x Wavelength (λ)

and

C = 3 x 108 m s-1

Frequency range = 7.5 × 1014 Hz

Substituting the values in the formula,

$3 \times 10^8 = 7.5 × 10^{14} \times λ \\[0.5em] \text {λ} = \dfrac {3 \times 10^8 }{7.5 × 10^{14}} \\[0.5em] \Rightarrow \text {λ} = 0.4 \times 10^{-6} \text {m} \\[0.5em] \Rightarrow \text {λ} = 400 \times 10^{-9} \text {m} \\[0.5em]$

Therefore,

λ = 400 nm

#### Question 9

The correct order of angle of deviation of indigo, green, yellow and red colours is :

1. δI > δG > δY > δR
2. δG > δI > δY > δR
3. δR > δG > δY > δI
4. δR > δY > δG > δI

δI > δG > δY > δR

Reason — The order of deviation is : δI > δG > δY > δR as red light deviates the least and indigo the most.

## Exercise 6(A) — Very Short Questions

#### Question 1

How does the speed of light in glass change on increasing the wavelength of light?

On increasing the wavelength of light in glass, the speed of light will also increase.

For example — In visible light, the speed of violet colour ( wavelength λ = 4000 Å) is least and red colour (wavelength λ = 8000 Å) is most.

#### Question 2

Which colour of white light travels (a) fastest (b) slowest, in glass?

(a) Red colour of white light travels fastest in glass as it has longest wavelength i.e., λ = 8000 Å.

(b) Violet colour of white light travels slowest in glass as it has shortest wavelength i.e., λ = 4000 Å.

#### Question 3

Name the subjective property of light related to its wavelength.

Colour of light is the subjective property of light related to its wavelength.

Different colours differ in their wavelength. In fact, wavelength is the characteristic of colour, irrespective of its origin i.e., the light of the same colour, obtained from different sources will have same wavelength.

#### Question 4

What is the range of wavelength of the spectrum of white light in —

(i) Å, and

(ii) nm?

(i) The range of wavelength in Å is 4000 Å to 8000 Å.

(ii) The range of wavelength in nm is 400 nm to 800 nm.

#### Question 5

Name four colours of the spectrum of white light which have wavelength longer than blue light.

The four colours of the spectrum of white light which have wavelength longer than blue light are green, yellow, orange and red.

#### Question 6

Which colour of the white light is deviated by a glass prism (i) the most and, (ii) the least?

As we know, that the deviation caused by a prism increases with the decrease in the wavelength of light.

(i) In visible light, the violet colour ( wavelength = 4000 Å) is deviated the most.

(ii) In visible light, the red colour ( wavelength = 8000 Å) is deviated the least.

## Exercise 6(A) — Short Questions

#### Question 1

Name three factors on which the deviation produced by a prism depends and state how does it depend on the factors stated by you.

The three factors on which the deviation produced by a prism depends are as follows —

1. The angle of incidence (i) — As the angle of incidence increases, the angle of deviation first decreases, reaches to a minimum value for a certain angle of incidence and then on further increasing the angle of incidence, the angle of deviation begins to increase.
2. The angle of prism (A) — Angle of deviation increases with increase in the angle of prism (A).
3. Refractive index of the material of prism — For a given angle of incidence, the prism with a higher refractive index produces a greater deviation than the prism which has a lower refractive index.
For example — A flint glass prism produces more deviation than a crown glass prism for same refracting angle since μflint > μcrown

#### Question 2

How does the deviation produced by a triangular prism depend on the colour (or wavelength) of light incident on it?

Speed of light in a transparent medium decreases with the decrease in wavelength of light. Therefore, the refractive index of glass (material of prism) increases with the decrease in wavelength of light.

Hence, the deviation produced by a prism also increases with the decrease in the wavelength of light incident on it.

For example — In visible light, violet colour ( wavelength λ = 4000 Å) is deviated the most and red colour (wavelength λ = 8000 Å) is deviated the least.

#### Question 3

(a) Write the approximate wavelengths for (i) blue and (ii) red light.

(b) The wavelength of violet and red light are 4000 Å and 8000 Å respectively.

Which of the two has higher frequency?

(a) The approximate wavelengths for blue light is 4800 Å and red light is 8000 Å.

(b) The colour of light with shortest wavelength has the highest frequency.
When we compare the wavelength of violet colours (4000 Å) and red (8000 Å), we observe that the wavelength of violet colour is shorter than that of red.
Hence, Violet light of 4000 Å has higher frequency.

#### Question 4

Write the seven prominent colours present in white light in the order of increasing wavelength.

The seven prominent colours present in white light in the order of increasing wavelength are as follows —

1. Violet
2. Indigo
3. Blue
4. Green
5. Yellow
6. Orange
7. Red

#### Question 5

Name the seven prominent colours of the white light spectrum in order of their increasing frequencies.

The seven prominent colours of the white light spectrum in order of their increasing frequencies are —

1. Red
2. Orange
3. Yellow
4. Green
5. Blue
6. Indigo
7. Violet

#### Question 6

The wavelengths for the light of red and blue colours are nearly 7.8 x 10-7 m and 4.8 x 10-7 m respectively.

(a) Which colour has the greater speed in vacuum?

(b) Which colour has greater speed in glass?

(a) In vacuum, both have the same speed.

(b) As speed of light increases with increase in wavelength of light. When we observe the given values, we find that the wavelength of red colour (7.8 x 10-7 m) is more than that of blue colour (4.8 x 10-7 m). Hence, in glass, red light has greater speed.

#### Question 7

Define the term dispersion of light.

The phenomenon of splitting of white light by a prism into its constituent colours is known as dispersion.

#### Question 8

What do you understand by the term spectrum?

On passing white light through a prism, the band of colours seen on a screen is called the spectrum.

#### Question 9

A ray of white light is passed through a glass prism and a spectrum is obtained on a screen.

(a) Name the seven colours of the spectrum in order.

(b) Do the colours have the same width in the spectrum?

(c) Which colour of the spectrum of white light deviates (i) the most? (ii) the least?

(a) The seven colours of the spectrum in order are Violet, Indigo, Blue, Green, Yellow, Orange and Red.

(b) No, all the seven colours have different widths in the spectrum.

(c) Violet colour of the white light is deviated the most, as it's wavelength is least i.e., 4000 Å and Red colour of the white light is deviated the least, as it's wavelength is the longest i.e., 8000 Å.

## Exercise 6(A) — Long Questions

#### Question 1

Explain the cause of dispersion of white light through a prism.

The cause of dispersion of white light is the change in speed of light with wavelength.

When white light enters the first surface of a prism, light of different colours due to their different speeds in glass, gets deviated through different angles towards the base of the prism i.e., the dispersion (or splitting) of white light into its constituent colours takes place at the first surface of prism.

Violet colour is deviated the most and red colour the least.

Therefore, light of different colours present in white light follows different paths inside the glass prism and then strikes the second surface of prism

On the second surface of prism, only refraction takes place (from glass to air) and different colours are deviated through different angles i.e., violet is deviated the most and red the least. As a result colours get further separated on refraction at the second surface.

The light emerging out of prism, thus has different colours that spread out to form a spectrum on the screen.

#### Question 2

Explain briefly, with the help of a neat labelled diagram, how does white light gets dispersed by a prism. On which surface of the prism, there is both the dispersion and deviation of light, and on which surface of the prism, there is only the deviation of light?

When white light enters the first surface of a prism, light of different colours due to their different speeds in glass, gets deviated through different angles towards base of the prism i.e., the dispersion of white light into its constituent colours takes place at the first surface of prism.

On the second surface of the prism, only refraction takes place and different colours are deviated through different angles i.e., violet colour is deviated the most and red colour the least. Hence, the colours get further separated on refraction at the second surface.

(i) On the first surface, there is both the dispersion and deviation of light.

(ii) On the second surface, there is only the deviation of light.

#### Question 3

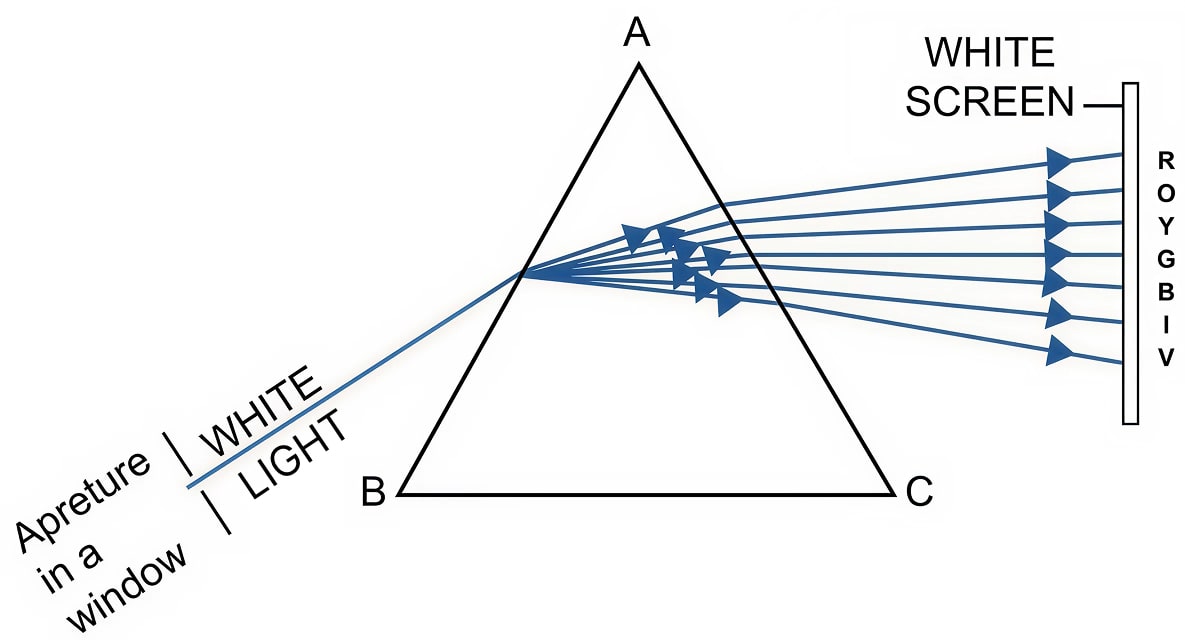

The diagram shown below, shows the path taken by a narrow beam of yellow monochromatic light passing through an equiangular glass prism. If the yellow light is replaced by a narrow beam of white light incident at the same angle, draw another diagram to show the passage of the white light through the prism and label it to show the effect of the prism on the white light.

Below diagram shows the effect of the prism on the white light:

#### Question 4

The figure given below, shows a thin beam of white light from a source S striking on one face of a prism.

(a) Complete the diagram to show the effect of the prism on the beam and to show what is seen on the screen.

(b) If a slit is placed in between the prism and the screen to pass only the light of green colour, what will you then observe on the screen?

(c) What conclusion do you draw from the observation in part (b) above?

(a) Below diagram shows the effect of the prism on the beam and the spectrum seen on the screen:

A coloured patch like a rainbow is seen on the screen. This is called the spectrum.

(b) When a slit is placed in between the prism and the screen to pass only the light of green colour then only green light is observed on the screen.

(c) With the help of the above experiment we can say that the prism does not produce colours, but it only splits the various colours present in the light incident on it.

#### Question 5

(a) A beam of monochromatic light undergoes minimum deviation through an equiangular prism. How does the beam pass through the prism, with respect to its base?

(b) If white light is used in the same way as in part (a) above, what change do you expect in the emergent beam?

(c) What conclusion do you draw about the nature of white light in part (b)?

(a) When a beam of monochromatic light undergoes minimum deviation through an equiangular prism, then the beam passes parallel to the base of the prism.

(b) If white light is used instead of a monochromatic light, then the white light splits into its constituent colours i.e., spectrum is formed.

(c) With the help of the experiment given above, we conclude that the white light is polychromatic in nature.

## Exercise 6(A) — Numericals

#### Question 1

Calculate the frequency of yellow light of wavelength 550 nm. The speed of light is 3 x 108 m s-1.

As we know,

Speed of light (c) = Frequency (f) x Wavelength (λ)

Given,

λ = 550 nm

= 550 × 10-9 m

= 0.55 x 10-6 m

C = 3 x 108 m s-1

Substituting the values in the formula, we get,

$3 \times 10^8 = \text {f} \times 0.55 × 10^{-6} \\[0.5em] \text {f} = \dfrac {3 \times 10^8 }{0.55 × 10^{-6}} \\[0.5em] \Rightarrow \text {f} = 5.45 \times 10^{14} \text {Hz} \\[0.5em]$

Hence, we get,

Frequency = 5.4 × 1014 Hz

#### Question 2

The frequency range of visible light is from 3.75 × 1014 Hz to 7.5 × 1014 Hz. Calculate its wavelength range. Take speed of light = 3 x 108 m s-1

As we know,

Speed of light (c) = Frequency (f) x Wavelength (λ)

Given,

C = 3 x 108 m s-1

Frequency range = 3.75 × 1014 Hz to 7.5 × 1014 Hz.

Let, f1 = 3.75 × 1014 Hz

Substituting the values in the formula,

$3 \times 10^8 = 3.75 × 10^{14} \times λ \\[0.5em] \text {λ} = \dfrac {3 \times 10^8 }{3.75 × 10^{14}} \\[0.5em] \Rightarrow \text {λ} = 0.8 \times 10^{-6} \text {m} \\[0.5em] \Rightarrow \text {λ} = 8000 \times 10^{-10} \text {m} \\[0.5em]$

As, 1 Å = 10-10 m

Therefore,

λ1 = 8000 Å

Let, f2 = 7.5 × 1014 Hz

Substituting the values in the formula,

$3 \times 10^8 = 7.5 × 10^{14} \times λ \\[0.5em] \text {λ} = \dfrac {3 \times 10^8 }{7.5 \times 10^{14}} \\[0.5em] \Rightarrow \text {λ} = 0.4 \times 10^{-6} \text {m} \\[0.5em] \Rightarrow \text {λ} = 4000 \times 10^{-10} \text {m} \\[0.5em]$

As, 1 Å = 10-10 m

Therefore,

λ2 = 4000 Å

Therefore, the wavelength range is 4000 Å to 8000 Å.

## Exercise 6(B) — Multiple Choice Type

#### Question 1

When an electromagnetic wave passes from one medium to the other, which property remains unchanged ?

1. speed
2. wavelength
3. direction of travel
4. frequency

frequency

Reason — When an electromagnetic wave passes from one medium to another, the frequency of the wave remains unchanged. This is a fundamental property of electromagnetic waves.

#### Question 2

Two waves A and B have wavelengths 0.01 Å and 9000 Å respectively. The waves A and B are:

1. Gamma wave and ultraviolet wave respectively.
2. Microwave and infrared wave respectively.
3. Radiowave and gamma wave respectively.
4. Gamma wave and infrared wave respectively.

Gamma wave and infrared wave respectively

Reason — Wave A with a very short wavelength is characteristic of gamma rays and wave B with a much longer wavelength falls into the infrared range.

#### Question 3

The correct arrangement of the following radiations in an increasing order of their wavelengths is :

X-rays, infrared rays, gamma rays, microwaves.

1. gamma rays, infrared rays, X-rays, microwaves
2. gamma rays, X-rays, microwaves, infrared rays
3. gamma rays, X-rays, infrared rays, microwaves
4. X-rays, gamma rays, infrared rays, microwaves

gamma rays, X-rays, infrared rays, microwaves

Reason — The arrangement of radiations in increasing order of their wavelengths is

• Gamma rays,
• X-rays,
• Ultraviolet,
• Visible light,
• Infrared rays,
• Microwaves and

#### Question 4

The source of ultraviolet light is —

1. electric bulb
2. red hot iron ball
3. sodium vapour lamp
4. carbon arc-lamp

The source of ultraviolet light is carbon arc-lamp.

Reason — The source of ultraviolet light is carbon arc-lamp.

#### Question 5

For obtaining the spectrum of ultraviolet radiation, the material of prism should be :

1. glass
2. quartz
3. rock salt
4. does not matter

quartz

Reason — For obtaining the spectrum of ultraviolet radiation, the material of prism should be quartz as they are absorbed by glass.

#### Question 6

A radiation P is focused by a proper device on the bulb of a thermometer. Mercury in the thermometer shows a rapid increase. The radiation P is —

2. visible light
4. X-rays

Reason — Mercury in the thermometer shows a rapid increase due to the heating effect of the radiation. Hence, we can say that the radiation P is the infrared radiation.

#### Question 7

For obtaining the spectrum of infrared radiation, the material of prism should be :

1. glass
2. quartz
3. rock salt
4. does not matter

rock salt

Reason — For obtaining the spectrum of infrared radiation, the material of prism should be of rock salt as it does not absorb infrared radiation whereas glass prism does.

#### Question 8

The most energetic electromagnetic radiations are —

1. microwaves
2. ultraviolet waves
3. X-rays
4. gamma rays

gamma rays

Reason — Gamma rays are the most energetic electromagnetic radiations of wavelength shorter than 0.01 nm and frequency above 1019 Hz.

#### Question 9

The waves used for taking photographs at night are :

1. infrared waves
2. microwaves
4. ultrasonic waves

infrared waves

Reason — Infrared rays due to longer wavelength can penetrate darkness better than visible light, allowing cameras equipped with infrared sensors to capture images even in very low light conditions.

#### Question 10

The radiation used for satellite communication is :

1. microwaves
3. gamma rays
4. X-rays

microwaves

Reason — The radiation used for satellite communication is microwaves.

#### Question 11

Column X shows the kinds of electromagnetic waves and column Y shows their applications.

Column XColumn Y
(A) Infrared rays(i) in remote-controlled gadgets
(C) X-rays(iii) for detection of bone fractures
(D) Ultraviolet rays(iv) absorption by atmospheric ozone layer

Choose the correct pairing :

1. A - (i), B - (ii), C - (iii), D - (iv)
2. A - (iv), B - (iii), C - (ii), D - (i)
3. A - (i), B - (ii), C - (iv), D - (iii)
4. A - (iii), B - (ii), C - (i), D - (iv)

A - (i), B - (ii), C - (iii), D - (iv)

Reason — The correct pairing is :

Column XColumn Y
(A) Infrared rays(i) in remote-controlled gadgets
(C) X-rays(iii) for detection of bone fractures
(D) Ultraviolet rays(iv) absorption by atmospheric ozone layer

## Exercise 6(B) — Very Short Question

#### Question 1

(a) Arrange the following radiations in the order of their increasing wavelength:
X-rays, infrared rays, radio waves, gamma rays and micro waves.

(b) Name the radiation which is used for satellite communication?

(a) The radiations in the order of their increasing wavelength are follows —

gamma rays, x-rays, infrared rays, micro waves, radio waves.

(b) The radiation used for satellite communication is micro waves.

#### Question 2

A wave has a wavelength of 10-3 nm. (a) Name the wave. (b) State it's one property different from light.

(a) The wave which has a wavelength of 10-3 nm is gamma rays.

(b) The property of gamma rays different from light is that, it has strong penetrating power. Hence, gamma rays can pass through human body and can cause immense damage.

#### Question 3

(a) Name the high energetic invisible electromagnetic wave which helps in the study of the structure of crystals.

(b) State one more use of the wave named in part (a).

(a) X-rays are used in the study of atomic arrangement in crystals as well as in complex molecules.

(b) As X-rays can penetrate through human flesh, but they are stopped by bones. Hence, they are also used to detect fracture in bones.

#### Question 4

State the name and the range of wavelength of the invisible electromagnetic waves beyond the red end of visible spectrum.

The invisible electromagnetic waves beyond the red end of visible spectrum are called the infrared (or heat )radiations.

Range of wavelength of infrared radiations is 8000 Å to 107 Å.

#### Question 5

Give the range of wavelength of the electromagnetic waves visible to us.

The range of wavelength of the electromagnetic waves visible to us is 4000 Å to 8000 Å.

They are called the visible radiations (or visible light) because in the presence of these radiations, other objects are seen by us.

#### Question 6

Name the region just beyond (i) the red end and (ii) the violet end, of the spectrum.

(i) The region just beyond the red end of the spectrum is known as the infrared.

(ii) The region just beyond the violet end of the spectrum is known as the ultraviolet.

#### Question 7

Name the radiation which can be detected by (a) a thermopile (b) a solution of silver chloride.

(a) Infrared

(b) Ultraviolet

#### Question 8

Name the radiations of wavelength just (a) longer than 8 x 10-7 m, (b) shorter than 4 x 10-7 m

(i) The radiations of wavelength just longer than 8 x 10-7 m are infrared radiation.

(ii) The radiations of wavelength just shorter than 4 x 10-7 m are Ultraviolet radiations.

#### Question 9

Name the material of prism required for obtaining the spectrum of (a) ultraviolet light, (b) infrared radiations.

(a) Ultraviolet radiations are absorbed through glass, but can pass through quartz. Therefore, to obtain the ultraviolet spectrum from its source, a quartz prism is used.

#### Question 10

Name the radiations which are absorbed by the green house gases in the earth’s atmosphere.

The green house gases such as carbon dioxide, present in the earth's atmosphere absorb the low energy infrared radiations and keep the earth's surface warm.

## Exercise 6(B) — Short Question

#### Question 1

(a) Give a list of at least five radiations, in the order of their increasing wavelength, which make up the complete electromagnetic spectrum.

(b) Name the radiation mentioned by you in part (a) which has the highest penetrating power.

The list of radiations of electromagnetic spectrum in increasing order of their wavelength is as follows —

(i) Gamma rays

(ii) X – rays

(iii) Ultraviolet rays

(iv) Visible light

(b) Gamma rays of the electromagnetic spectrum has the highest penetrating power.

#### Question 2

A wave has wavelength 50 Å. (a) Name the wave. (b) State it's speed in vacuum. (c) State it's one use.

(a) Wavelength of X-ray waves is in the range of 0.1 Å to 100 Å. Hence, the electromagnetic wave having wavelength 50 Å is X-ray.

(b) As all the waves move with the speed of 3 x 108 ms-1 in vacuum. Hence, the speed of x-ray in vacuum is also equal to 3 x 108 ms-1.

(c) X-ray waves are used for the detection of fracture in bones, teeth etc (i.e., radiography).

#### Question 3

Name three radiations and their wavelength range which are invisible and beyond the violet end of the visible spectrum.

The three radiations which are invisible and beyond the violet end of the visible spectrum, (in decreasing order of wavelength) are as follows —

(i) Ultraviolet rays10 – 400
(ii) X-rays0.01 – 10
(iii) Gamma raysbelow 0.01

#### Question 4

What do you understand by the invisible spectrum?

The part of spectrum beyond the red extreme and the violet extreme to which our eyes do not respond is called the invisible spectrum.

#### Question 5

State the approximate range of wavelength associated with (a) ultraviolet rays, (b) visible light, and (c) infrared rays.

(a) Ultraviolet rays — wavelength range 10 to 400 nm

(b) Visible light — wavelength range 400 to 800 nm

(c) Infrared radiations — wavelength range 800 to 106 nm.

#### Question 6

Name two electromagnetic waves of wavelength smaller than that of violet light. State one use of each.

Two electromagnetic waves of wavelength smaller than that of violet light ( λ = 400 nm ) are —

(a) Ultraviolet radiations ( λ = 100 to 400 nm ) and

(b) X-rays ( λ = 0.01 to 10 nm )

Ultraviolet radiations are used for sterilizing purposes.

X-rays are used for detection of fracture in bones, teeth, etc. ( i.e.,radiography ) and for diagnostic purposes such as CAT scan in medical science.

#### Question 7

Give one use each of (a) microwaves, (b) ultraviolet radiations, (c) infrared radiations, and (d) gamma rays.

(a) Microwaves are used for analysis of atomic and molecular structure.

(b) Ultraviolet radiations are used for sterilizing purposes.

(c) Infrared radiations are used for therapeutic purposes by doctors.

(d) Gamma rays are used in medical science to kill cancer cells (i.e., radio therapy).

#### Question 8

Name the waves (a) of lowest wavelength, (b) used for taking photographs in dark, (c) produced by the changes in the nucleus of an atom, (d) of wavelength nearly 0.1 nm

(a) The waves of lowest wavelength are gamma rays ( λ = below 0.01 nm).

(b) The waves used for taking photographs in dark are infrared rays.

(c) The waves produced by the changes in the nucleus of an atom are gamma rays.

(d) The waves having wavelength nearly 0.1 nm are X-rays.

#### Question 9

Two waves A and B have wavelength 0.01 Å and 9000 Å respectively. (a) Name the two waves. (b) Compare the speeds of these waves when they travel in vacuum.

(a) Wave A is Gamma rays (as the wavelength range of gamma rays is shorter than 0.1 Å). Wave B is Infrared radiations (as the wavelength range of infrared radiations is 8000 Å to 107 Å).

(b) All electromagnetic waves travel with the speed of light (i.e., 3 x 10 8 ) in vacuum. Thus, ratio of speeds of these waves in vacuum is 1 : 1.

#### Question 10

All red hot bodies such as a heated iron ball, flame, fire, etc. are the sources of infrared radiations. The Sun is the natural source of infrared radiations.

The electric arc and sparks give ultraviolet radiations. A mercury vapour lamp emits radiations, a part of which has ultraviolet radiations along with the visible light.

#### Question 11

Name three properties of ultraviolet radiations which are similar to the visible light.

Three properties of ultraviolet radiations which are similar to the visible light are as follows —

(a) Ultraviolet radiations travel in a straight line like visible light, with a speed of 3 x 108 m s-1 in air or vacuum.

(b) They obey the laws of reflection and refraction.

(c) They affect the photographic plate.

#### Question 12

Give two properties of ultraviolet radiations which differ from the visible light.

The properties of ultraviolet radiations which differ from the visible light are as follows —

(a) They are usually scattered by the dust particles present in the earth’s atmosphere.

(b) They produce fluorescence on striking a zinc-sulphide screen.

#### Question 13

Mention three properties of infrared radiations similar to visible light.

Three properties of infrared radiations which are similar to the visible light are as follows —

(a) Infrared radiations travel in a straight line like visible light, with a speed of 3 x 108 m s-1 in air or vacuum.

(b) They obey the laws of reflection and refraction.

(c) They do not produce fluorescence.

#### Question 14

Give two properties of infrared radiations which differ from visible light.

Two properties of infrared radiations which differ from the visible light are as follows —

(a) They do not pass through glass as they are absorbed by glass.

(b) They are invisible.

#### Question 15

State one harmful effect each of the (a) ultraviolet and (b) infrared radiations.

Harmful effects of the given radiations are as follows —

(a) Ultraviolet radiations cause health hazards like skin cancer if human body is exposed to them for a long period.

(b) Infrared radiations causes skin burns.

#### Question 16(i)

Give reason for the following:

Infrared radiations are used for photography in fog.

Infrared radiations are used for photography in fog because they are not much scattered, and so they can penetrate appreciably through it.

#### Question 16(ii)

Give reason for the following:

Infrared radiations are used for signals during the war.

Infrared radiations are used for signals during the war because they are not visible and they are not absorbed much in the medium.

#### Question 16(iii)

Give reason for the following:

The photographic darkrooms are provided with infrared lamps.

The photographic darkrooms are provided with infrared lamps because they provide some visibility without affecting the photographic film.

#### Question 16(iv)

Give reason for the following:

A rock salt prism is used instead of a glass prism to obtain the infrared spectrum.

A rock salt prism is used instead of a glass prism to obtain the infrared spectrum because the rock salt prism does not absorb the infrared radiations, whereas a glass prism absorbs them.

#### Question 16(v)

Give reason for the following:

A quartz prism is required for obtaining the spectrum of the ultraviolet light.

A quartz prism is required for obtaining the spectrum of the ultraviolet light because ultraviolet radiations can pass through quartz whereas ordinary glass absorbs them.

#### Question 16(vi)

Give reason for the following:

Ultraviolet bulbs have a quartz envelope instead of glass.

Ultraviolet bulbs have a quartz envelope instead of glass because ultraviolet radiations are not absorbed by quartz whereas ordinary glass absorbs the ultraviolet light.

## Exercise 6(B) — Long Question

#### Question 1

What are infrared radiations? How are they detected? State one use of these radiations.

The electromagnetic waves of wavelength λ = 8000 Å to 107 Å are called infrared radiations.

For the detection of infrared radiations —

If a thermometer having it's bulb blackened is moved from the violet end towards the red end of the spectrum of visible light, it is observed that there is a very slow rise in temperature. But when this thermometer is moved beyond the red extreme, a rapid rise in temperature is noticed.

It means that the part of spectrum beyond the red extreme of the visible light has certain radiations which produce a strong heating effect, but they are not visible. These radiations are called the infrared radiations.

The infrared radiations are used for therapeutic purposes by doctors.

#### Question 2

What are ultra violet radiations? How are they detected? State one use of these radiations.

The electromagnetic radiations of wavelength λ = 100 Å to 4000 Å are called the ultraviolet radiations.

For the detection of ultra violet radiations —

If silver chloride solution is exposed to the electromagnetic waves starting from the red to the violet end and then beyond it, it is observed that from the red end to the violet end, the solution remains almost unaffected.

But just beyond the violet end, the solution first turns violet and then finally it becomes dark brown (or black).

It shows that there exists certain radiations beyond the violet extreme of the visible part, which are chemically more active than the visible light. These radiations are called the ultra violet radiations ( or actinic rays).

Ultraviolet radiations are used for sterilizing purposes. Type

## Exercise 6(B) — Numericals

#### Question 1

An electromagnetic wave has a frequency of 500 MHz and a wavelength of 60 cm.

(a) Calculate the speed of the wave.

(b) Name the medium through which it is travelling.

(a) As we know,

Velocity of wave (c) = frequency (f) x wavelength (λ)

Given,

f = 500 MHz

Hence, f = 500 x 106 Hz or

f = 5 x 108 Hz

λ = 60 cm

As 100 cm = 1m

Therefore,

60 cm = $\dfrac{60}{100}$ m

Hence, λ = 0.6 m

Substituting the values in the formula above we get,

$c = (5 \times 10^8) \times 0.6 \\[0.5em] \Rightarrow c = 3 \times 10^8$

Hence,

Speed of the electromagnetic wave = 3 x 108 ms-1

(b) The electromagnetic wave is travelling through air.

#### Question 2

The wavelength of X-rays is 0.01 Å . Calculate it's frequency. State the assumption made, if any.

Assumption — Speed of X-rays = 3 x 108 ms-1

As we know,

Speed of wave (c) = frequency (f) x wavelength (λ)

Given,

c = 3 x 108 ms-1

λ = 0.01 Å

As 1 Å = 10-10 m

Hence,

λ = 0.01 Å = 0.01 x 10-10 m

Substituting the values in the formula above we get,

$3 \times 10^8 = f \times (0.01 \times 10^{-10} ) \\[0.5em] \Rightarrow f = \dfrac{3 \times 10^8}{0.01 \times 10^{-10}} \\[0.5em] \Rightarrow f = \dfrac{3 \times 10^8}{1 \times 10^{-12}} \\[0.5em] \Rightarrow f = 3 \times 10^{20} Hz\\[0.5em]$

Hence,

Frequency of x - rays = 3 x 1020 Hz

## Exercise 6(C) — Multiple Choice Type

#### Question 1

For scattering of light, the necessary condition is that the size of air molecules should be ............... the wavelength of incident light.

1. smaller than
2. greater than
3. equal to
4. both (b) and (c)

smaller than

Reason — Scattering of light occurs when the size of the particles or molecules in the medium through which light travels is smaller than the wavelength of the light. This condition allows the incident light to interact with the particles, causing it to scatter in various directions.

#### Question 2

The intensity of scattered light is related to its wavelength as :

1. I ∝ λ4
2. I ∝ λ2
3. I ∝ $\dfrac{1}{λ^4}$
4. I ∝ $\dfrac{1}{λ^2}$

I ∝ $\dfrac{1}{λ^4}$

Reason — Intensity of scattered light is found to be inversely proportional to the fourth power of the wavelength of light.

(i.e., I ∝ $\dfrac{1}{λ^4}$ ).

#### Question 3

In the white light of Sun, maximum scattering by the air molecules present in the earth’s atmosphere is for —

1. red colour
2. yellow colour
3. green colour
4. blue colour

blue colour

Reason — Intensity of scattered light is found to be inversely proportional to the fourth power of the wavelength of light.

(i.e., I ∝ $\dfrac{1}{λ^4}$ ).

As blue light has lowest wavelength, hence, the blue light is scattered the most.

#### Question 4

Violet light is scattered nearly ............... times more than the red light.

1. 4
2. 8
3. 16
4. 9

16

Reason — According to Rayleigh scattering, the amount of scattering is inversely proportional to the fourth power of the wavelength of the light.

We know,

λviolet = 4000 Å and

λred = 8000 Å.

According to Rayleigh scattering,

$\dfrac{\text{Intensity of scattering of violet}}{\text{Intensity of scattering of red}}$ = $(\dfrac{λ_{red}}{λ_{violet}})^4$

So,

$\dfrac{\text{Intensity of scattering of violet}}{\text{Intensity of scattering of red}}$ = $(\dfrac{8000}{{4000}})^4$ = 24

= 16

Hence, Intensity of scattering of violet = 16 time Intensity of scattering of red.

#### Question 5

To an astronaut in a space-ship, the earth appears —

1. white
2. red
3. blue
4. black

blue

Reason — When an astronaut goes above the atmosphere of the earth in a rocket, he sees the sky black, but to him the earth appears blue due to the blue colour of sunlight scattered by the earth's atmosphere reaching him.

#### Question 6

The red colour of the sun at sunrise and sunset is due to which of the following phenomenon ?

1. deviation
2. dispersion
3. both deviation and dispersion
4. scattering

scattering

Reason — During sunrise and sunset, the sun is positioned at a lower angle in the sky. This causes sunlight to travel through a thicker layer of Earth's atmosphere, which scatters shorter wavelengths of light (such as blue and green) more strongly than longer wavelengths (such as red and orange). As a result, the shorter wavelengths are scattered out of the line of sight, leaving predominantly red and orange hues to be observed.

#### Question 7

The sky in a direction other than that of the sun appears ............... to an observer on the moon.

1. red
2. blue
3. orange
4. black

black

Reason — Unlike earth, which has an atmosphere that scatters sunlight in various directions, the moon lacks an atmosphere. As a result, there is no scattering of sunlight to create the blue sky that we see on earth. Hence, the sky in a direction other than that of the sun appears black to an observer on the moon.

#### Question 8

The danger signal is red because its wavelength is the ............... and therefore it gets ............ the least.

1. least, deviated
2. longest, scattered
3. longest, dispersed
4. least, scattered

longest, scattered

Reason — When light passes through a medium, shorter wavelengths (such as blue and violet) are scattered more strongly than longer wavelengths (such as red and orange). Hence, red light is often used for danger signals to ensure visibility over longer distances.

## Exercise 6(C) — Very Short Questions

#### Question 1

When sunlight enters the earth's atmosphere, state which colour of light is scattered (i) the most, and (ii) the least.

(i) Violet is scattered the most.

(ii) Red is scattered the least.

#### Question 2

A beam of blue, green and yellow light passes through the the earth's atmosphere. Name the colour which is scattered (a) the least, (b) the most.

(a) Yellow light is scattered the least as it has the highest wavelength.

(b) Blue light is scattered the most as it has the lowest wavelength.

## Exercise 6(C) — Short Questions

#### Question 1

What is meant by scattering of light?

Scattering is the process of absorption and then re-emission of light energy by the dust particles and air molecules present in the atmosphere.

#### Question 2

How does the intensity of scattered light depend on the wavelength of incident light? State the condition when this dependence hold.

The scattering of light is not same for all wavelengths of incident light.

The intensity of scattered light is found to be inversely proportional to the fourth power of the wavelength of light

( i.e., I ∝ $\dfrac{1}{λ^4}$ ).

The above relation holds true, when the air molecules are smaller in size than the wavelength of incident light.

The air molecules of size bigger than the wavelength of incident light, scatter the light of all wavelengths of white light to the same extent.

For example — The wavelength of violet is least (λ = 4000 Å) and that of red light is most (λ = 8000 Å), therefore, from the incident white light, violet light is scattered most and the red light is scattered the least. (violet light is scattered nearly 16 times more than the red light).

#### Question 3

Which colour of white light is scattered the least? Give reason.

Red colour of white light is scattered the least because wavelength of red light (λ = 8000 Å) is longest and intensity of scattered light (I) ∝ $\dfrac{1}{λ^4}$.

#### Question 4

The danger signal is red. Why?

In the visible light, the wavelength of red light is longest, therefore the light of red colour is scattered least by the air molecules of the atmosphere.

Hence, the light of red colour as compared to the light of other colours can penetrate to a longer distance without becoming weak.

Thus, red light can be seen from the farthest distance in comparison to the light of other colours having the same intensity.

Hence red light is used for danger signal, so that the signal may be visible from the far distance even in fog, etc.

#### Question 5

How would the sky appear when seen from the space (or moon)? Give reason for your answer.

When seen from the space (or moon), the sky would appear black in colour.

As there is no atmosphere on moon, therefore, no scattered Sun light reaches the moon's surface. Hence, to an observer on the surface of moon, no light reaches his eyes, except the light reaching directly from the Sun.

Thus, the sky in direction other than the that of the Sun will appear black.

Similarly, when an astronaut goes above the atmosphere of the earth in a rocket, he sees the earth black.

#### Question 6

What characteristic property of light is responsible for the blue colour of the sky?

The characteristic property of light responsible for the blue colour of sky is scattering.

#### Question 7

The colour of the sky, in direction other than of the Sun is blue. Explain.

The light from the Sun has to travel a long distance of the earth's atmosphere before reaching us. As light travels through the atmosphere, it gets scattered in different directions by the air molecules present in it's path.

The blue (or violet) light due to its short wavelength is scattered more as compared to the red light of longer wavelength.

Thus, the light reaching our eye directly from Sun is rich in red colour, while the light reaching our eye from all other directions is the scattered blue light.

Therefore, the sky in the direction, other than the direction of Sun, is seen blue.

#### Question 8

Why does the Sun appear red at sunrise and sunset?

At the time of sunrise and sunset, the light from Sun has to travel the longest distance of atmosphere to reach the observer.

Since, the blue light of short wavelength is scattered more, much of it is lost, while the red light of long wavelength is scattered a little, so it is not much lost.

Thus, blue light is almost absent in sunlight reaching the observer and only the red (white - blue = red) light reaches us.

As a result, the Sun and the region near by it, is seen red.

#### Question 9

The sky at noon appears white. Give reason.

At noon, the Sun is directly above our head, so we get the light rays directly from the Sun after travelling the shortest distance, without much scattering of any particular colour. Hence, the sky is seen white.

#### Question 10

The clouds are seen white. Explain.
