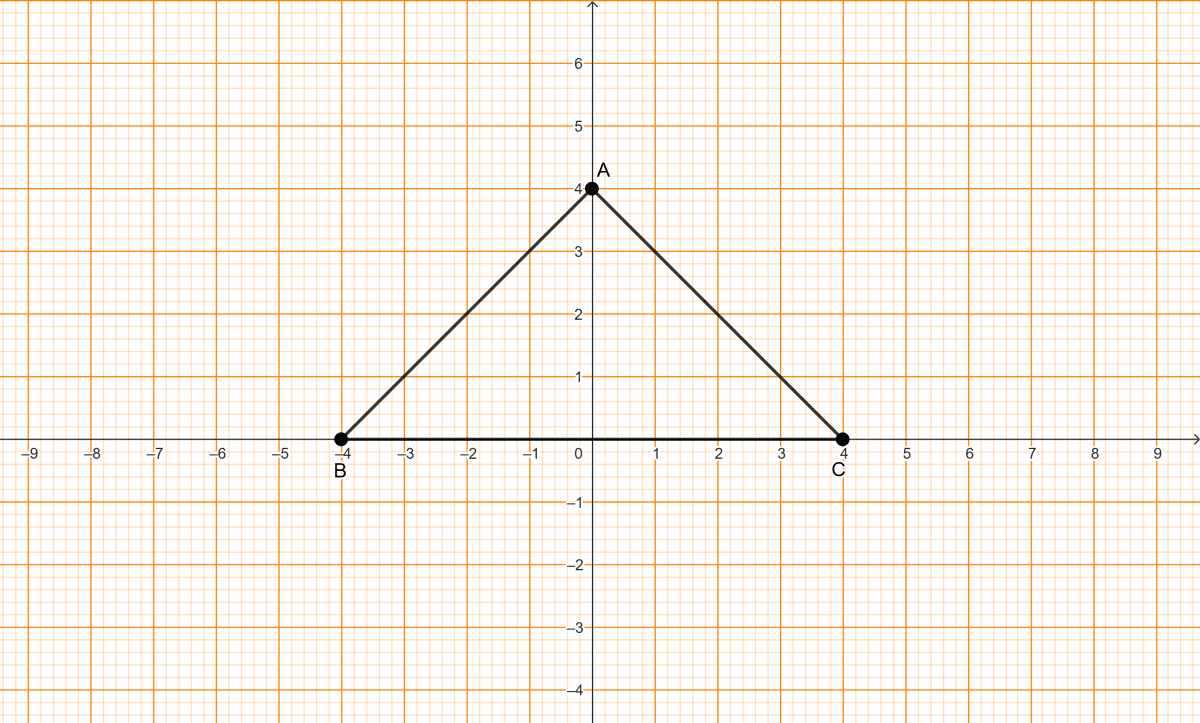

Study the graph and answer each of the following:
(i) Write down the co-ordinates of A, B and C. Reflect point A in x-axis and mark as A'.
(ii) Name the invariant point in 2nd quadrant on reflection in x-axis.
(iii) Join the points ABA'C. Name the figure formed.
Reflection
2 Likes
Answer

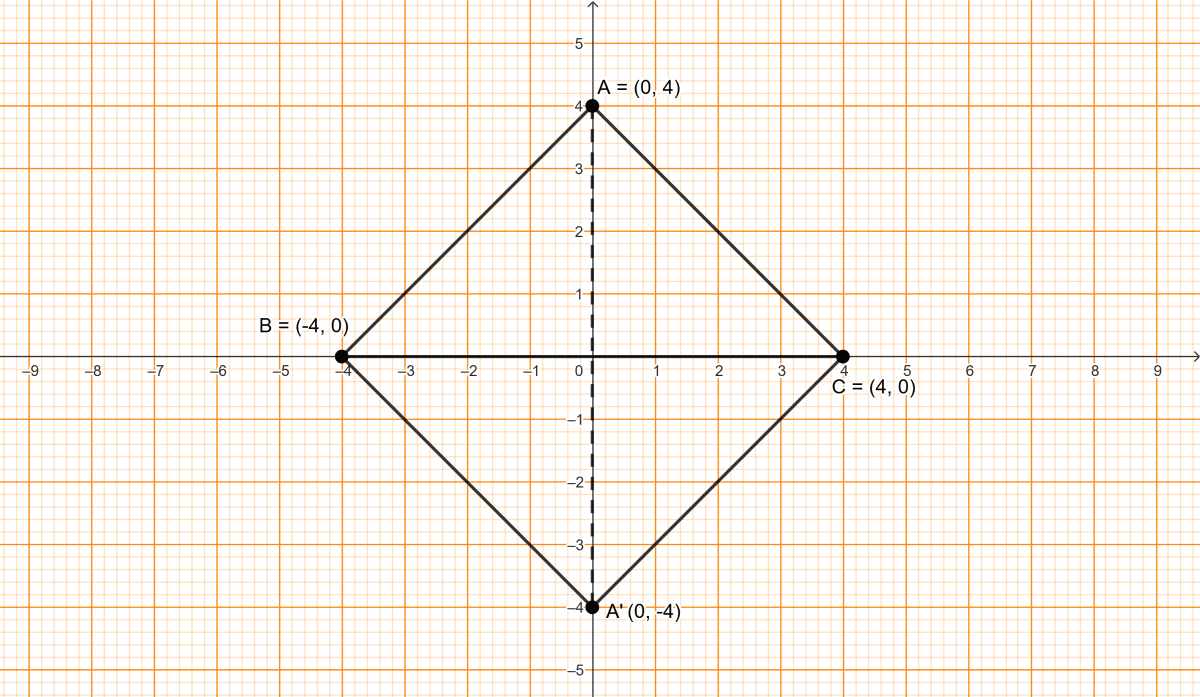

(i) A = (0, 4), B = (-4, 0) and C = (4, 0)
(ii) B
(iii) Square
Reason
From graph,
Co-ordinates of A = (0, 4), B = (-4, 0) and C = (4, 0).
Since, point B is in 2nd quadrant and it lies on x-axis and on reflection in x-axis it remains there only. Thus, B is invariant.
By formula,
Slope =
Slope of AB = = 1
Slope of A'B = = -1.
Since, product of slope of AB and A'B is -1.
Thus, AB and A'B are perpendicular to each other. Since, all sides are equal and angle between sides = 90°.
∴ ABA'C is a square.
